Inner tube: Nitrile Reinforcement: two braid of high-tensile steel wire Cover: Black Neoprene Blend Temperature Range:-40°F to 212°F(-40℃to 100℃) Application standards: EN853 2SN,GB3683.1 2SN,SAE J517 R1S, ISO 1436 2SN Application: High-pressure hydraulic oil lines used in construction, machine tool and agriculture application using petroleum or water –based hydraulic fluids. Hose sizes 3/16—5/8’’have a vacuum rating of 28 in Hg. Hose size ¾ - 1”have a vacuum rating of 24 in Hg.
Technical Data
Product Number
Hose ID
C.O.D.
Max W.P.
Min B.P.
Min B.R.
Weight
mm
in
mm
Mpa
psi
Mpa
psi
mm
kg/m
2SN-06
6.3
1/4
15.70
40.0
5801
160.0
23204.0
100
0.34
2SN-08
8.0
5/16
17.30
35.0
5076
140.0
20304.0
115
0.39
2SN-10
10.0
3/8
19.70
33.0
4786
132.0
19144.0
130
0.49
2SN-13
12.5
1/2
23.00
27.5
3989
110.0
15956.0
180
0.59
2SN-16
16.0
5/8
26.20
25.0
3625
100.0
14500.0
200
0.71
2SN-19
19.0
3/4
30.10
21.5
3118
86.0
12472.0
240
0.89
2SN-25
25.0
1
38.90
16.5
2393
65.0
9430.0
300
1.37
2SN-32
31.5
1 1/4
49.50
12.5
1813
50.0
7252.0
420
2.27
2SN-38
38.0
1 1/2
55.90
9.0
1305
36.0
5220.0
500

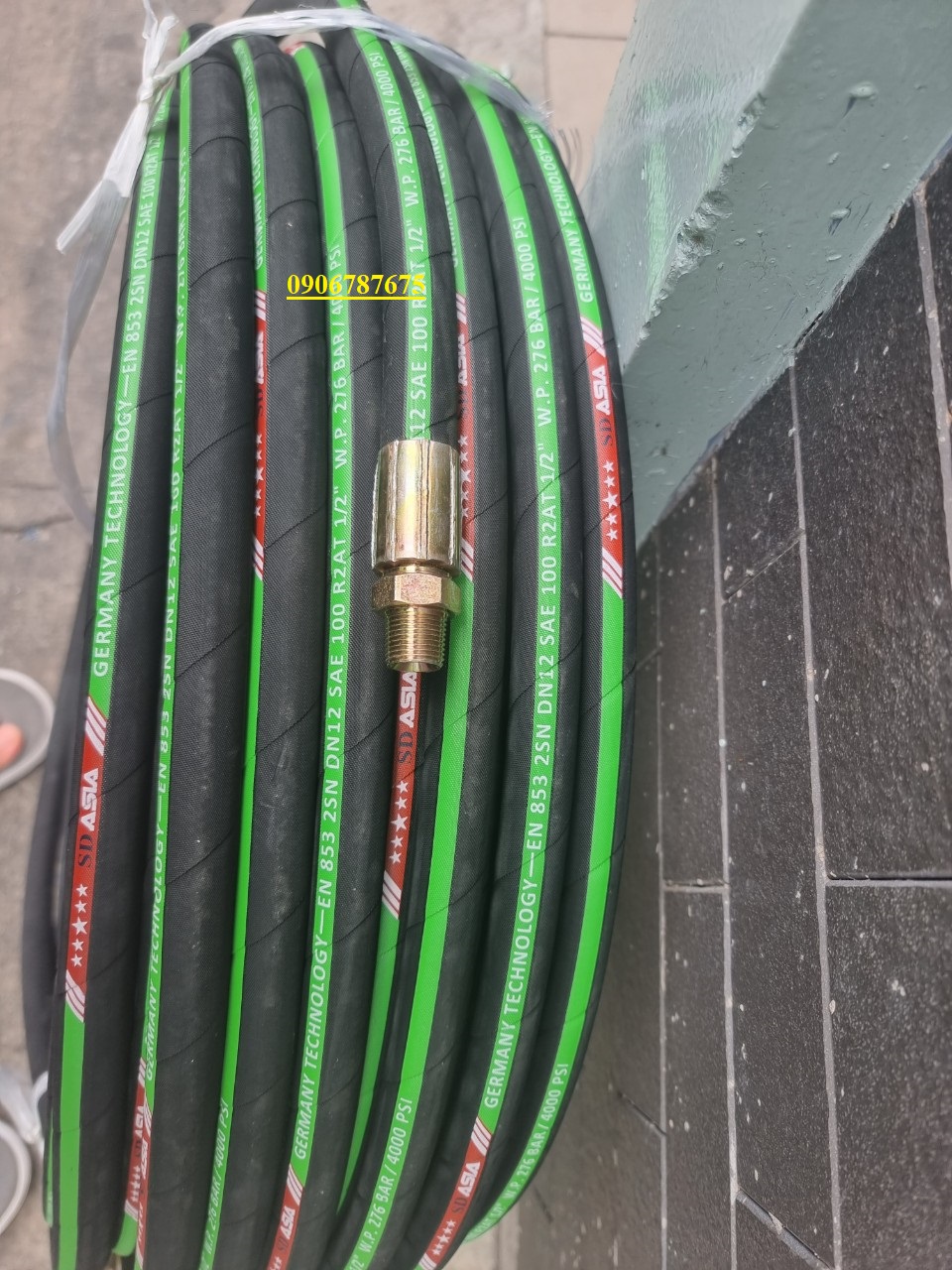

baogiathietbi.vn cung cấp tới quý khách hàng ống thủy lực asia 1/2" 2 bố, hàng có sẵn giá tốt tới quý khách hàng
