Thiết bị đa năng KYORITSU KEW6010B

Baogiathietbi.vn Xin báo giá:

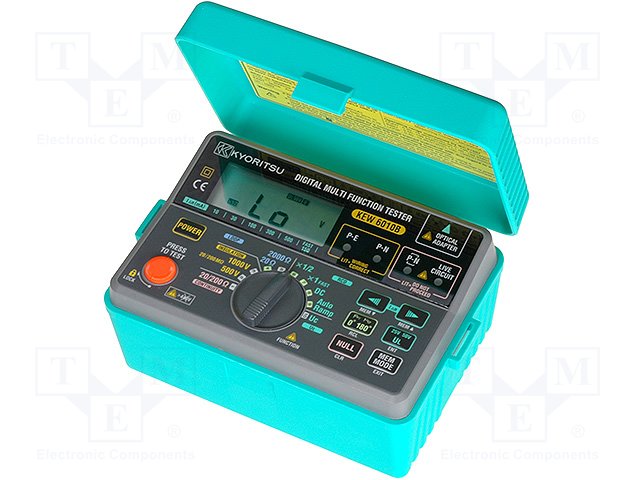

 KYORITSU KEW6010B

Manufacturer	KYORITSU
Type of meter	appliance meter
Kind of display used	LCD 3,5 digit (1999)
Test voltage	500V/1000V
Insulation resistance measuring ranges	0,5M...200MΩ
Continuity test	0,2...20/200Ω
RCD parameters measurement	IDN rated current settings: 10m/30m/100m/300m/500m
Loop impedance measurement	0,4Ω...20Ω/2000Ω (rated test current 25A (20Ω) 15mA (2000Ω);, measuring time 10ms (20Ω) 350ms (2000Ω)
Touch voltage measurement	0...100V
AC voltage measuring range	100...300V
AC voltage measuring accuracy	3%
Bandwidth for AC voltage measurements	50Hz
Loop impedance measuring accuracy	±(3% + 8 digits)
IP rating	IP40
Weight with battery	840g
Power supply	8 batteries 1,5V LR6 (AA)
Measurement	short circuit loop impedance, AC voltage, insulation resistance
Conform to the norm	EN61010 300V CAT III
Interface	RS232

Measuring instrument features:

• automatic compensation of test leads resistance at continuity test
• automatic circuit discharging after insulation resistance measurement
• test current phase switch 0...180°
• indication of L-PE, L-N connections correctness
• indication of touch voltage 25V or 50V measuring range overflow with blockade of measurement continuation
• light signalling of live circuit
• memory for 300 measurements

Standard equipment:

• batteries
• test probes
• test leads

Additional information

• Gross weight: 2.51 kg
• Guarantee (months): 12
